Braden manufactures high-performance OEM replacement gas turbine cartridge filters engineered to meet or exceed the performance of filters supplied by leading manufacturers, including Parker, Donaldson, AAF, Freudenberg, and Pneumafil. Built for both pulse-cleaned and static inlet systems across coastal, desert, industrial, and high-humidity applications.
Gas turbine intake filtration is critical to maintaining turbine performance. High-efficiency cartridge filters protect against airborne contaminants such as dust, salts, hydrocarbons, and moisture, all of which directly affect turbine efficiency and lifecycle costs.
Maintains low and stable ΔP across the service life of the filter.
Engineered media holds more particulate per filter, extending change-out intervals.
Stops salts, hydrocarbons, and abrasives from reaching the compressor.
Longer filter life means fewer change-outs and lower lifetime cost of ownership.

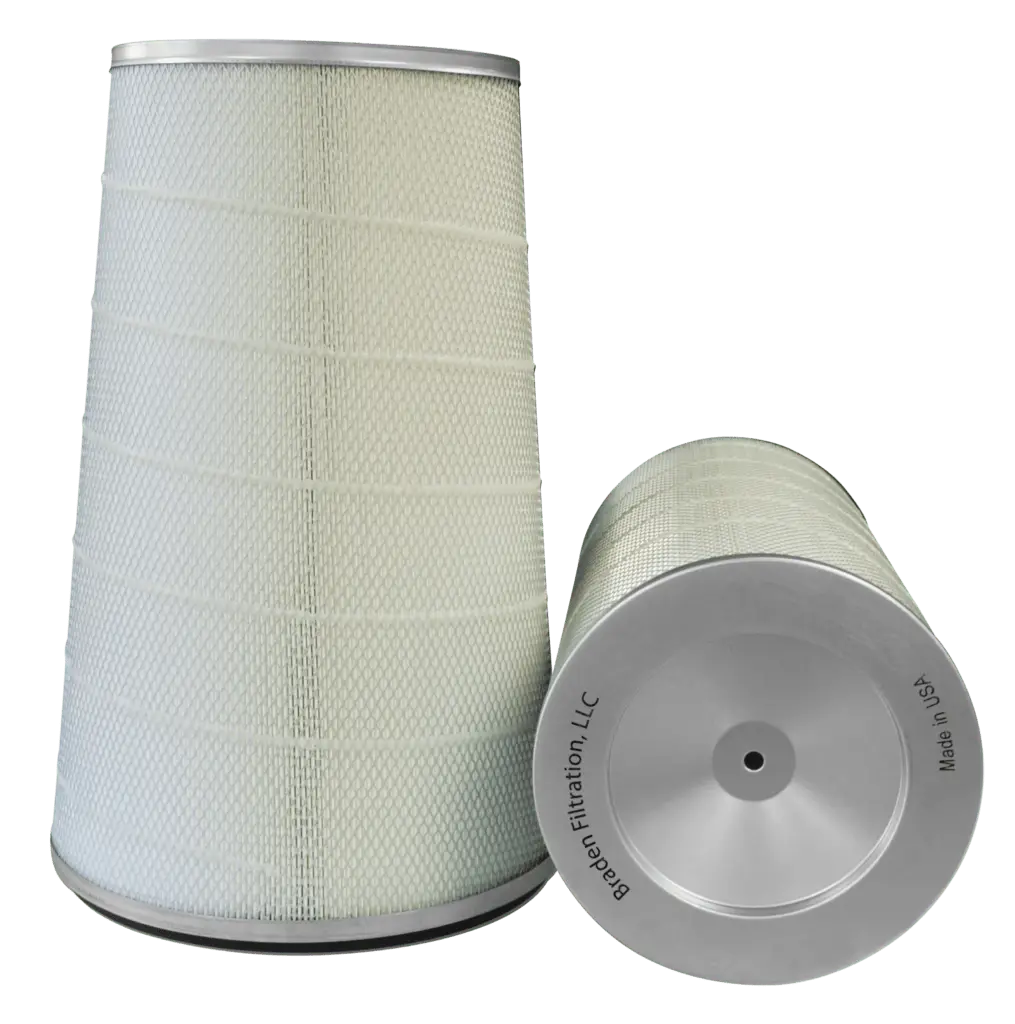

Braden manufactures cylindrical, conical, LM6000, and twist-lock cartridges sized to OEM housings and optimized for the airflow your system was built for.
Climate and contaminant profile drive the right media spec. Braden cartridges are configured for the conditions actually on site.
Salt-laden, high-humidity sites where moisture and corrosion are constant threats.
100% Synthetic · HEPAHeavy particulate loading and abrasive contaminants. Pulse-cleaning systems work hardest here.

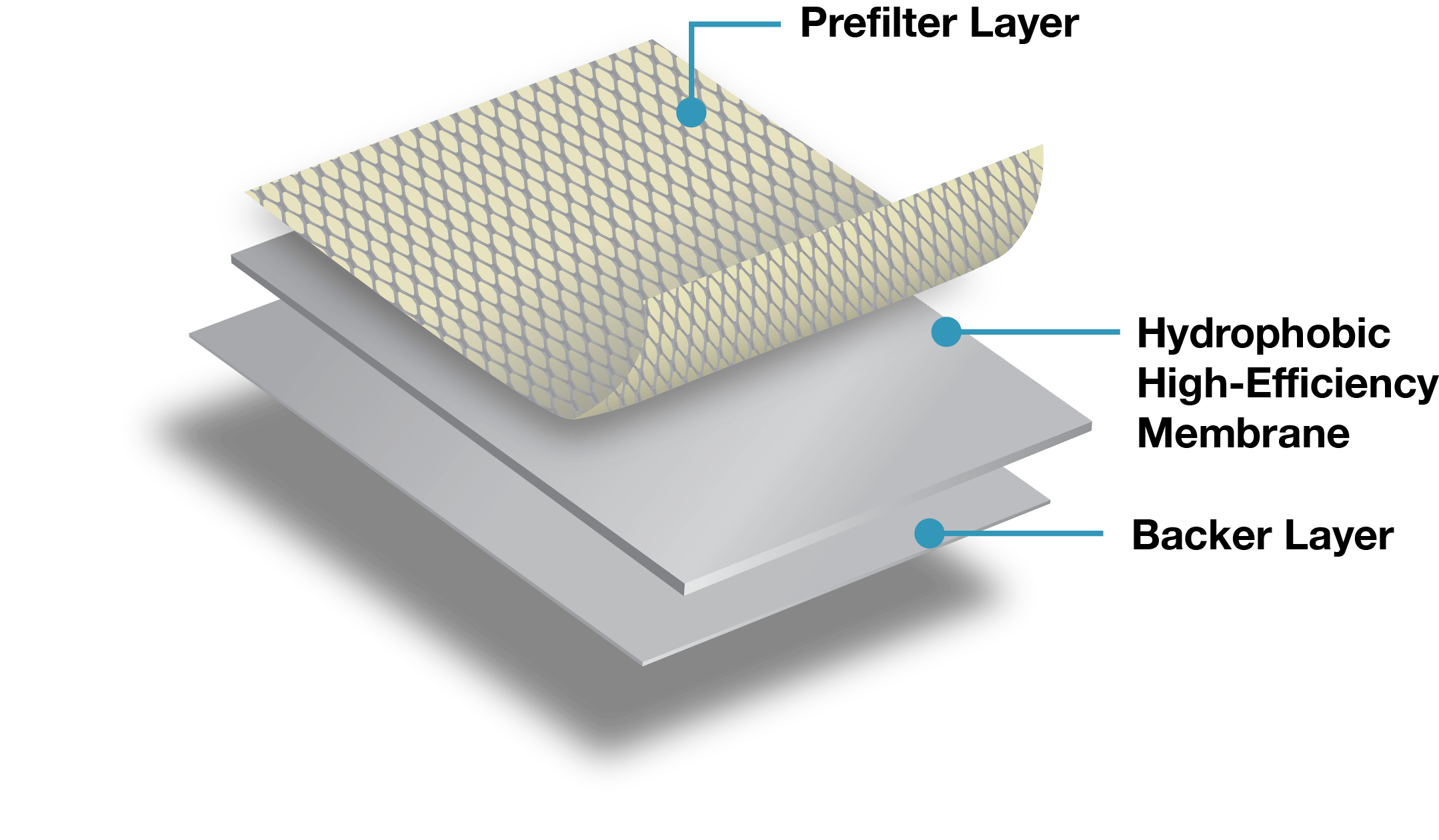

Premium NanofiberMixed particulate, hydrocarbons, and the usual plant ambient. The everyday workload.
Blended · SyntheticSubmicron control and salt/water barriers for the most demanding installations.
E12 HEPABraden offers a full media range, from premium nanofiber to HEPA, so the filter spec actually fits the conditions on site.
The right media is driven by climate, contaminant profile, and the cleaning regime your system uses. Use this as a starting point:
We also offer spun-bond media for pre-filtration and specialty applications. If you're unsure, send us your site conditions and we'll spec the right combination.
Send us your current part number and we'll match it to a Braden equivalent, with equal or improved performance, faster lead times, and competitive pricing.
Drop your existing OEM part number into our contact form, or call our team directly. We'll cross-reference it to a Braden equivalent and return a quotation.
Standard cartridge ranges and options. Custom configurations available, ask for a quote.
Built in the United States with a domestic supply chain and direct engineering oversight.
Including premium nanofiber. Tight control of efficiency, weight, and consistency batch-to-batch.
Direct fit and seal integrity across every major OEM platform.
Stocking programs and responsive production that support planned outages and routine change-out cycles.
Installed and operating in gas turbine applications across power generation and industrial sites worldwide.
A cartridge filter is the primary filtration element used in turbine inlet systems to remove airborne contaminants before they reach the compressor.
Yes. Braden manufactures direct OEM replacements for every major brand, including Donaldson, Parker Hannifin / Clarcor, AAF, Freudenberg / Viledon, Pneumafil / Nederman, and Camfil Farr, with equal or improved performance.
Yes. Poor-quality filters can increase differential pressure and reduce turbine output. High-performance filters maintain stable airflow and protect efficiency.
Typical service life is 24 to 48 months, depending on environment, media type, maintenance practices, and dust loading.
On static (non-pulsed) systems, filter wraps protect the cartridges from larger airborne particles and contaminants and extend service life.
Send us your existing OEM part number. Our engineering team will respond with a cross-reference and a quote.
